2 Ch, Laser Ablation (980/1064nm)

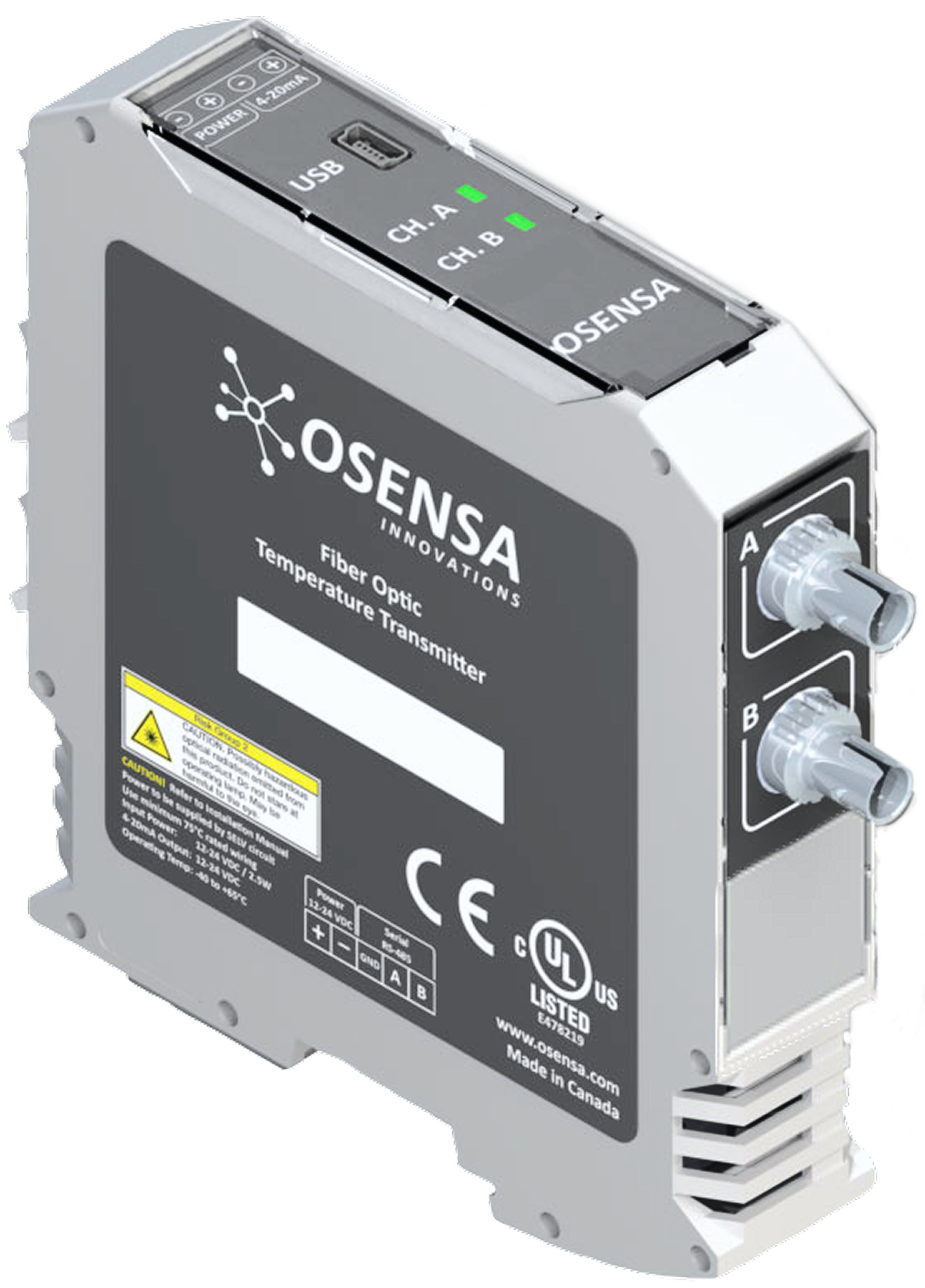

The FTX-200-LUX+HGLA transmitter is ideally suited for high temperature measurement applications offering exceptional performance where traditional thermocouples fail. It reads OSENSA’s proprietary high temperature fiber optic sensors targeting applications between 350°C and 800°C. It supports Modbus communications over an isolated RS-485 connection and also connects to a personal computer with a standard USB cable to provide real-time temperature trending and data logging with the optional OSENSAView Pro software. Also supported are Python, Matlab and LabView libraries. The 4-20mA analog outputs have 16 bit resolution with configurable alarms for easy connection to a PLC or temperature controller. Multiple signal conditioners can be connected in series and mounted on a standard 35mm DIN rail.
